IP122

Rugged Tablet

Compact & Light
Built for Every Task

The IP122 is a 12.2-inch fully rugged tablet designed for field operations, combining lightweight portability with high performance and industrial reliability. Powered by Intel® Core™ Ultra 5 fanless processors, it delivers quiet, stable computing, paired with a 700-nit sunlight-readable touchscreen for clear visibility even in bright outdoor environments. The magnesium-aluminum alloy unibody weighs only 1.6 kg, yet meets IP67 dust and water resistance and achieves MIL-STD-810H standards, resisting drops, vibration, dust, and wide temperature ranges.

Equipped with built-in fingerprint, NFC, and SE4710 barcode scanning modules, the IP122 enables fast authentication, asset management, and mobile payments. Modular connectivity with removable Wi-Fi 6, 4G/5G modules, and versatile I/O options—including full-function Type-C, RJ45, RS232, and HDMI—ensures seamless integration into field operations. Ideal for utilities, warehouse logistics, on-site maintenance, emergency response, and industrial automation.

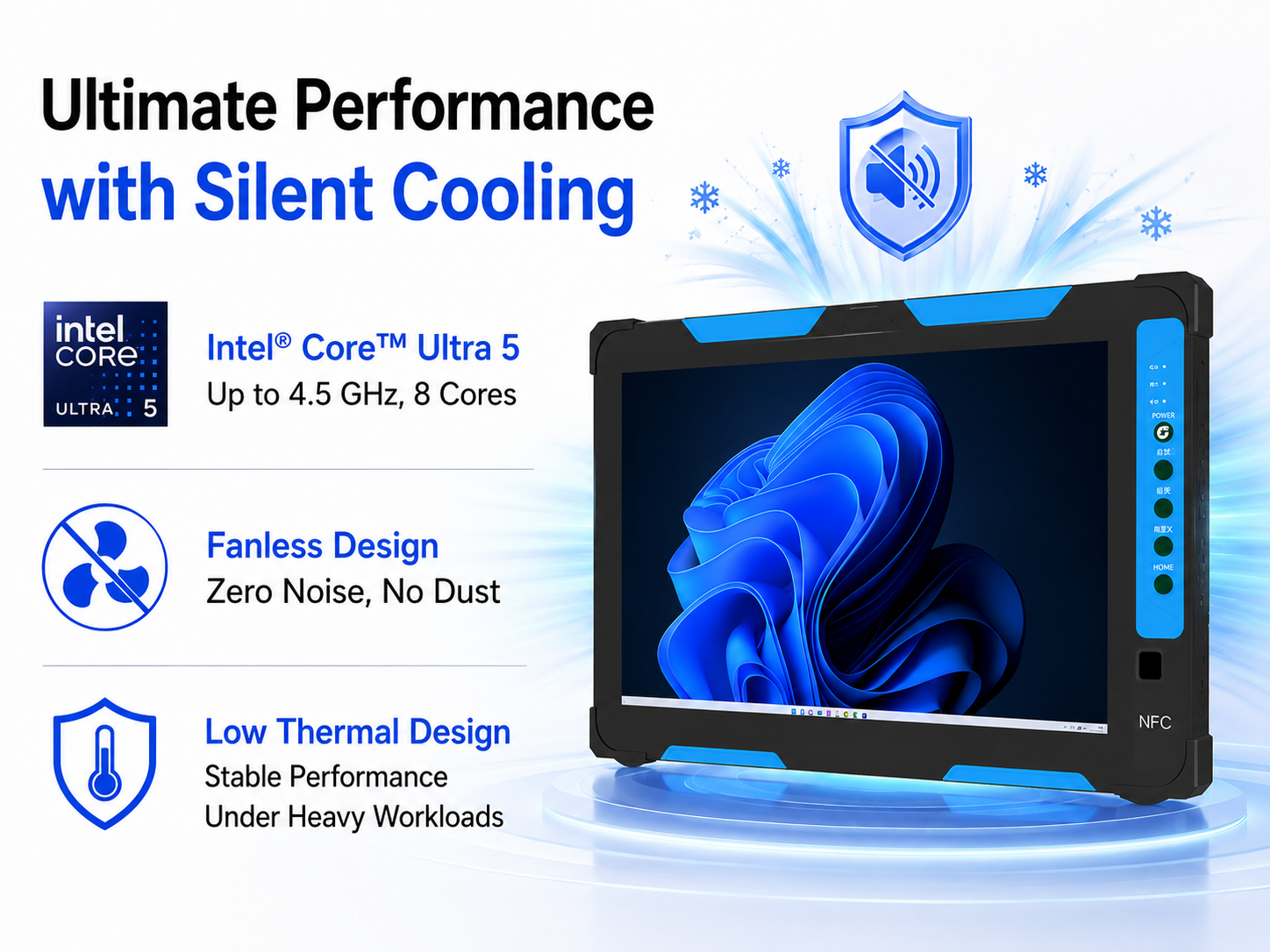

Ultimate Performance with Silent Cooling

Powered by Intel® Core Ultra 5 processors (up to 4.5 GHz, 8 cores) with a fanless design, the IP122 delivers high-speed computing for demanding industrial and field applications—without the noise and dust issues of traditional fans. Its low thermal design ensures stable, long-term performance even under continuous heavy workloads.

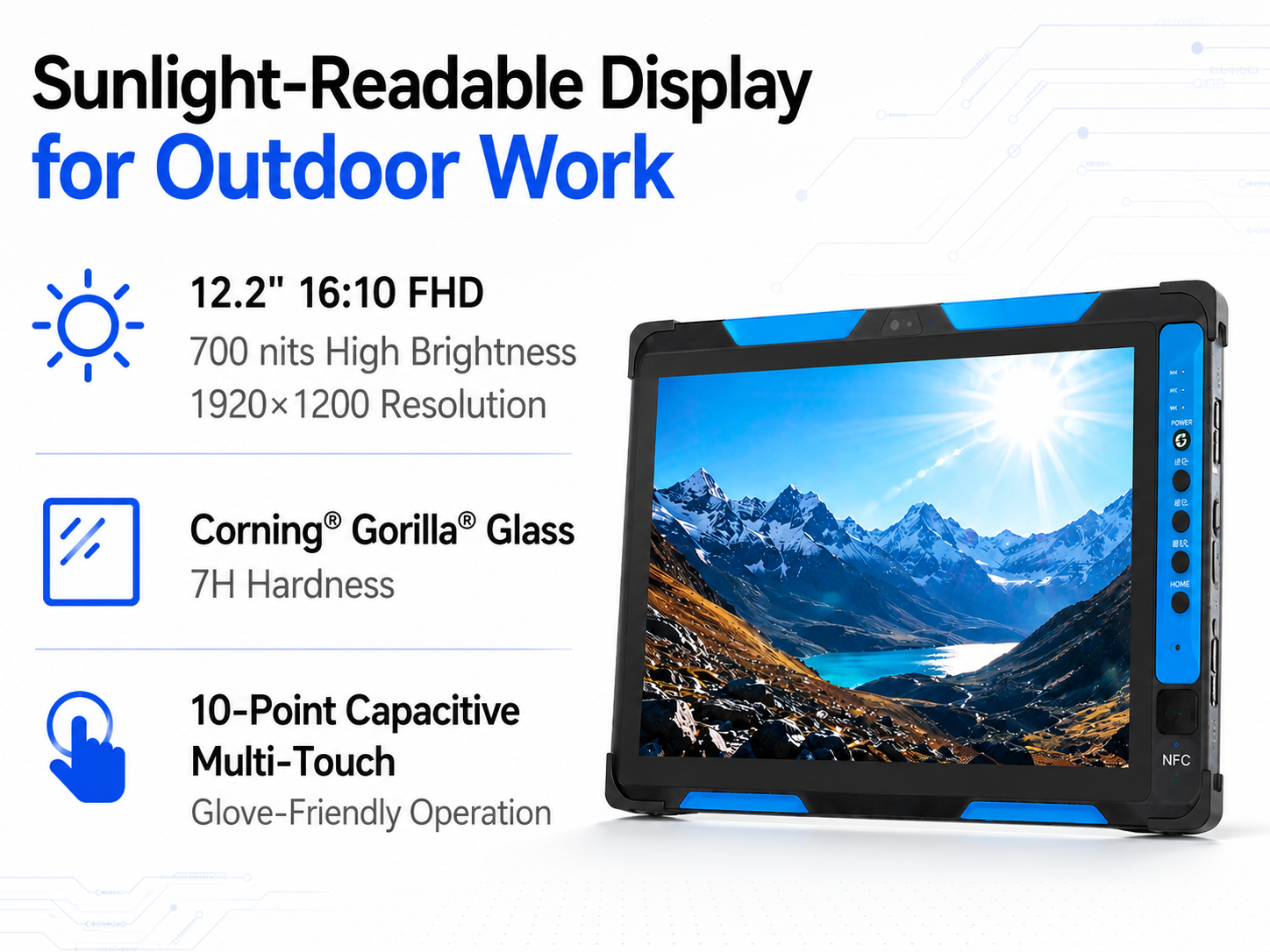

Sunlight-Readable Display for Outdoor Work

Featured with a 12.2-inch 16:10 FHD display and 700nits high-brightness LED backlight, delivering outstanding visibility under direct sunlight. Covered with Corning Gorilla glass over 7H hardness for scratch and impact resistance, it supports optional 10-point capacitive multi-touch with glove-friendly operation, perfectly adapting to all outdoor working scenarios.

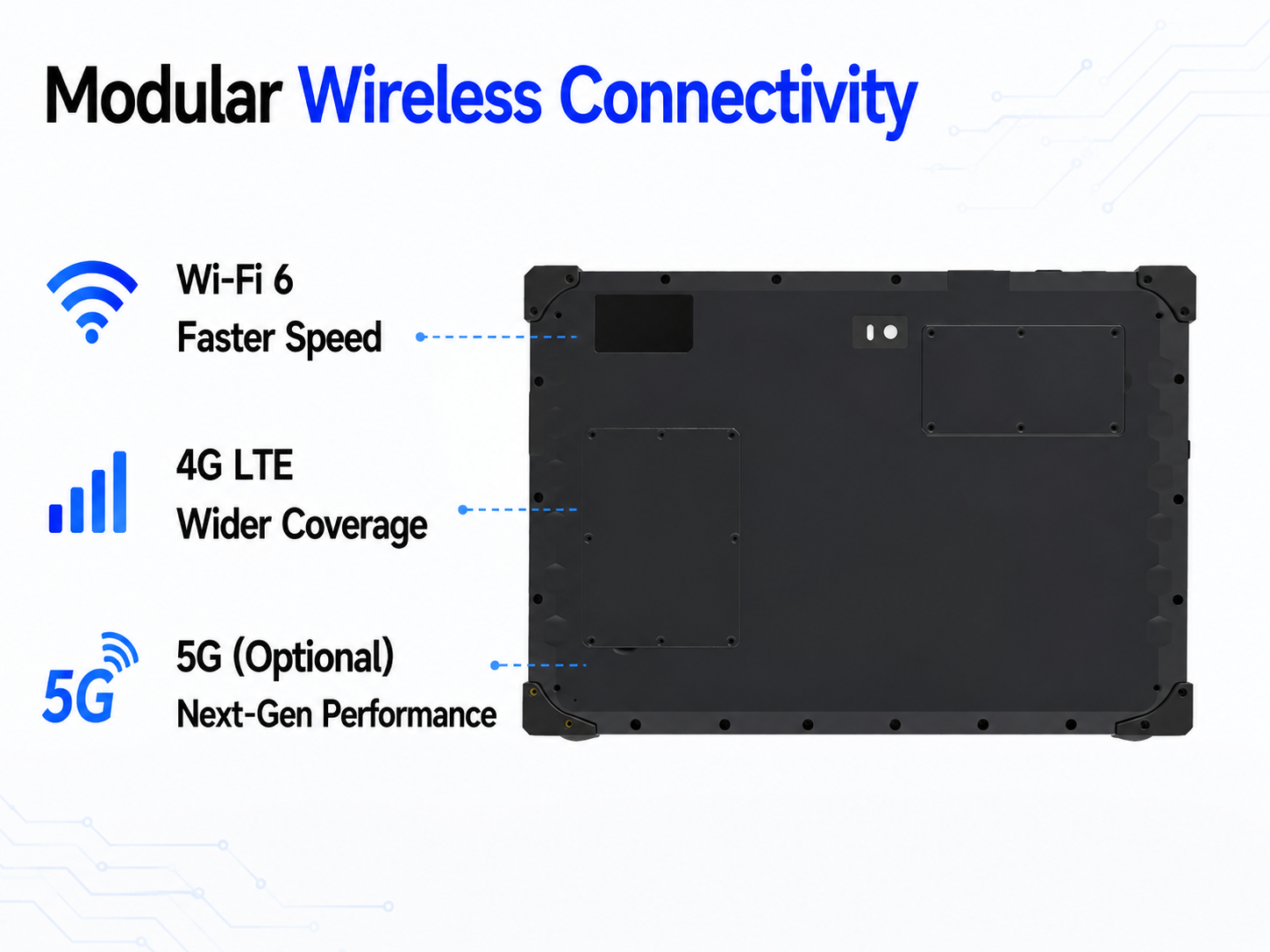

Modular Wireless Connectivity

The IP122 features a fully modular connectivity system, supporting removable Wi-Fi 6, 4G LTE, and optional 5G mobile broadband modules. This design allows field operators to quickly adapt to varying network conditions, upgrade to faster standards, or replace modules on-site without downtime. Reliable connectivity ensures uninterrupted data transfer, cloud access, and communication in any environment

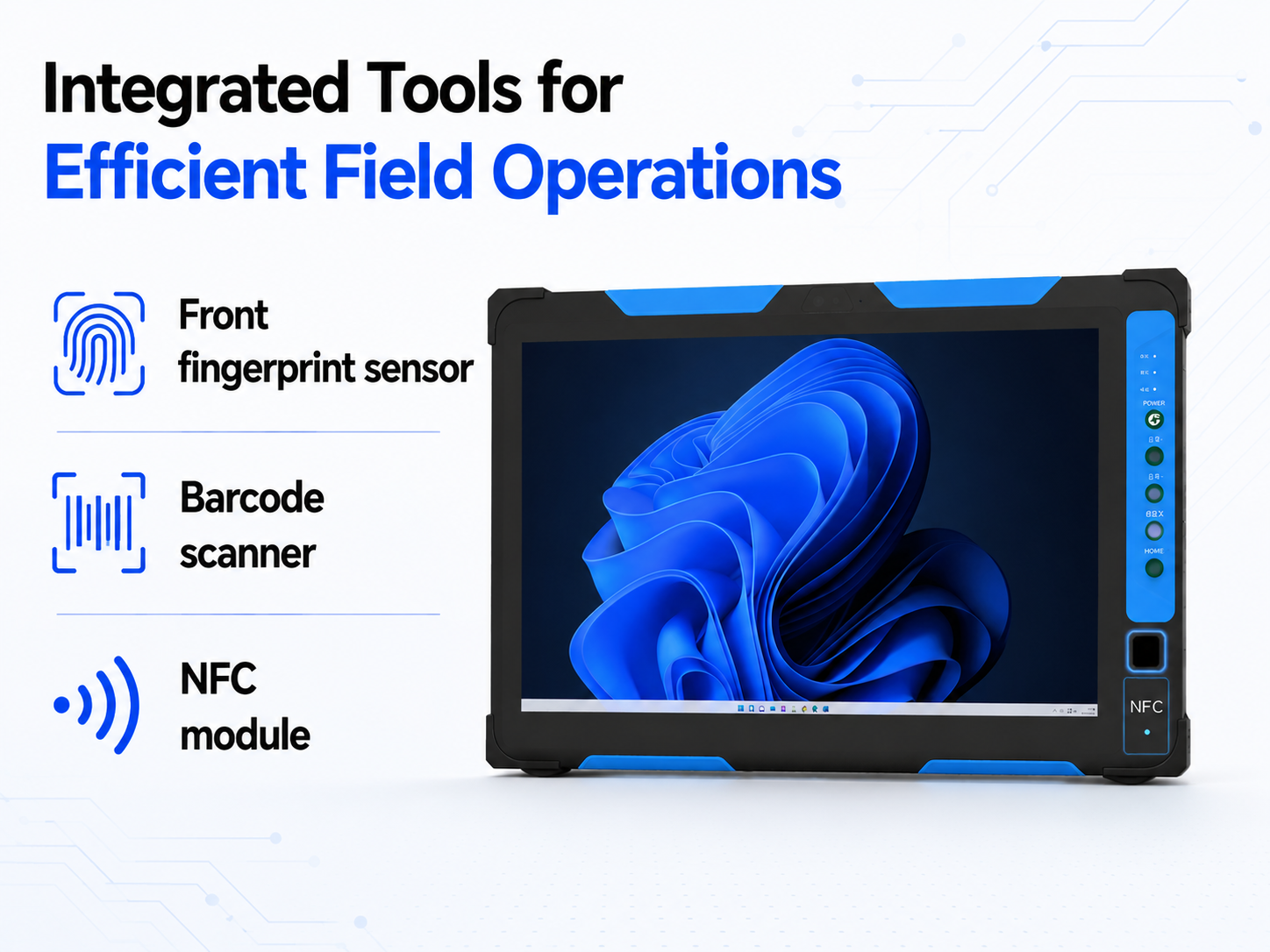

Integrated Tools for Efficient Field Operations

The IP122 integrates essential field tools directly into the device. A front fingerprint sensor enables fast, secure authentication; the NFC module supports contactless transactions and verification; and the built-in SE4710 barcode scanner allows rapid scanning and data capture. This consolidation reduces extra equipment, speeds up workflow, and enhances productivity and accuracy in industrial environments

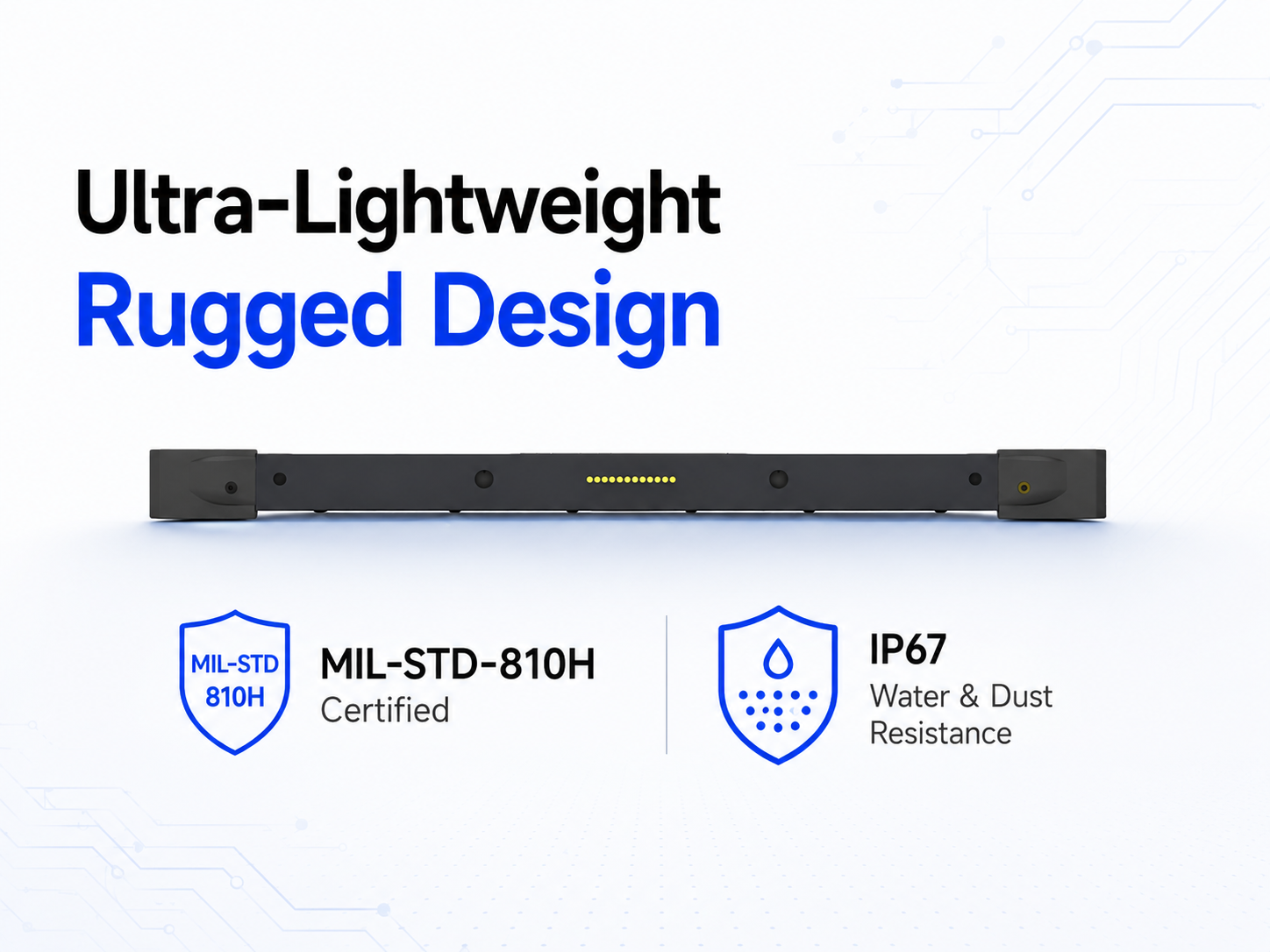

Ultra-Lightweight Rugged Design

Crafted from magnesium-aluminum alloy, the IP122 balances portability and toughness, weighing just 1.6 kg. It meets MIL-STD-810Ｈ　standards and IP67 water & dust resistance, surviving drops, shocks, vibrations, and extreme temperatures without compromising performance.

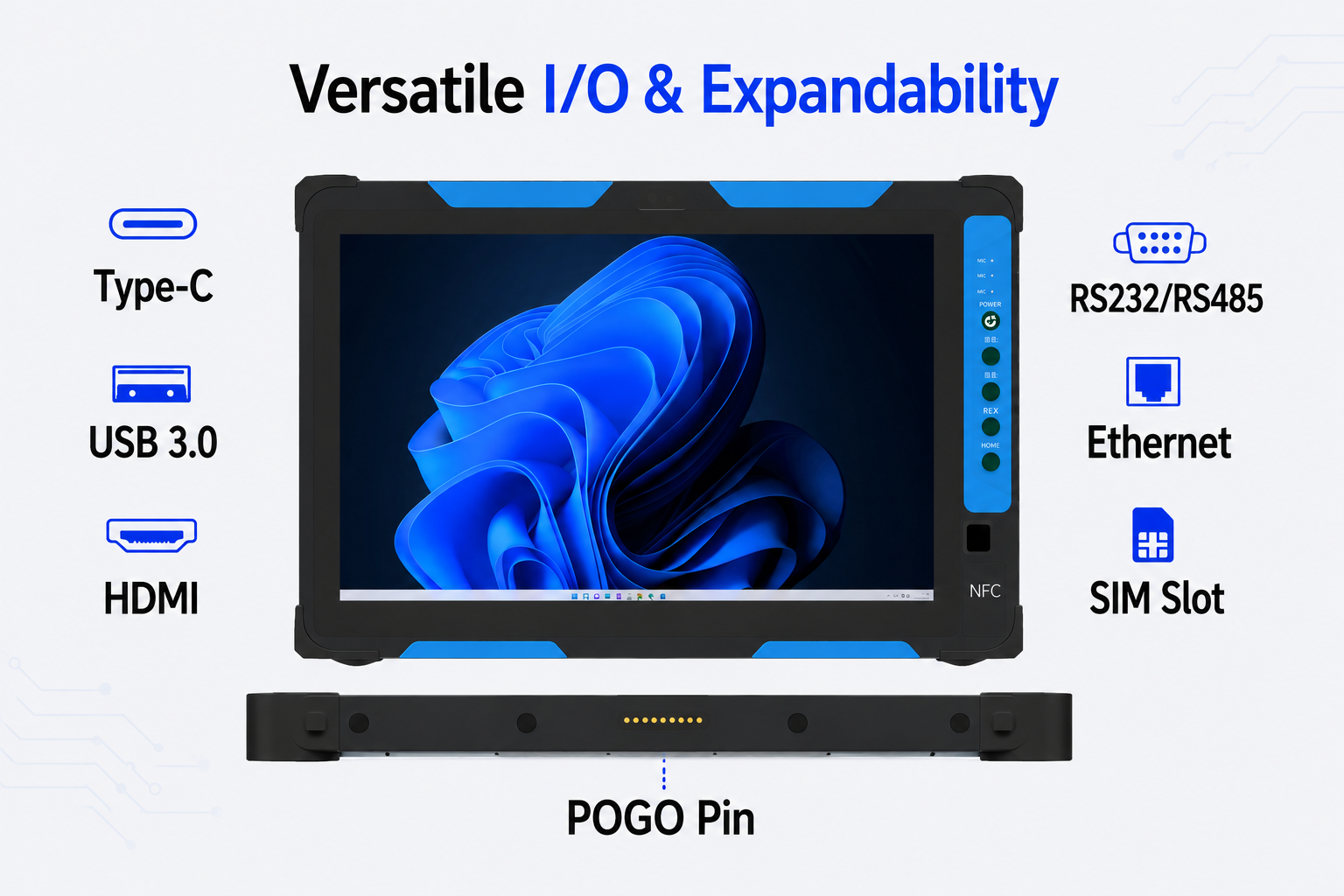

Versatile I/O & Expandability

Equipped with full-function Type-C, USB 3.0, HDMI, RS232/RS485, Ethernet, POGO keyboard connector, and SIM slot, the IP122 meets diverse industrial requirements. Hot-swappable modules and flexible docking solutions allow seamless integration into complex field systems.

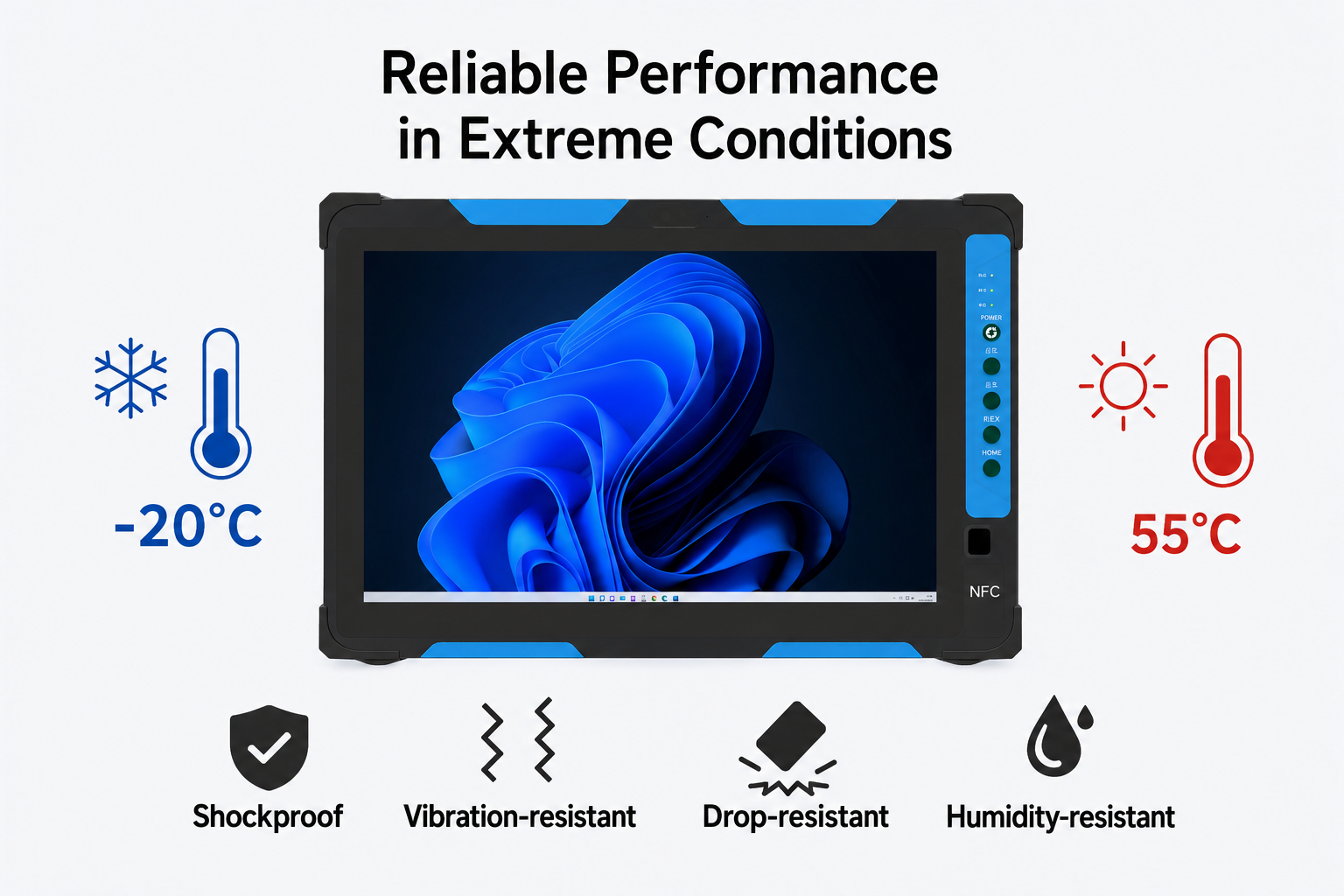

Reliable Performance in Extreme Conditions

The IP122 operates from -20ºC to 55ºC and can withstand shocks, vibration, drops, and humidity, ensuring continuous operation in the harshest field environments. Its rugged reliability minimizes downtime and maintains mission-critical productivity under extreme conditions.

IP122 Specifications

Download PDF

CPU

226V (IntelR Core Ultra 5 processor 226V) 8 core MAX 4.5 GHz TDP 17W
option：228V (Intel® Core Ultra 5 processor 228V)
236V (lntel@ Core Ultra 5 processor 236V)

Memory

8 GB/16 GB onboard

Storage

Optional：128 GB/256GB/512GB/1TB/2TB

Display

Type: FHD
Size: 12.2 inch 16 :10
Resolution: 1920*1200
Brightness: 700cd/㎡

Touch Screen

10 point capacitive screen , G+G , Corning gorilla hardness above 7H , scratch resistant

Camera

Front camera:500W
Rear camera:1300W/flashlight

Communication

1000M Ethernet
Intel® Wi-Fi 6 802.11ax（removable）
Bluetooth (v5.2)（removable）
4G LTE mobile broadband（removable）
standard precision GNSS(GPS、GLONASS、Galileo)
Optional: 5 G LTE mobile broadband（removable）
Optional:Fingerprint &NFC&Scan（SE4710)

I/OInterfaces

226V (IntelR Core Ultra 5 processor 226V)
1*type-C Full-function type-C
1*aviation plug charging
1*10 M/100M/1000M Network
1* RS232（OptionalRS485）
1*HDMI 1.4
1*USB-A（3 .0 USB）
1*type-C headphone jack
1*POGO PIN（keyboard）
SIM card port

N200/I3 N300
1*DC charging
1*10 M/100M/1000M Network
1* RS232（Optional /RS485/ scanning）
1*HDMI 1.4
2*USB-A（2 .0 USB）
1*3.5 mm headphone jack
1*POGO PIN（keyboard）
TF card
SIM card port

Environmental Specification

Temperature:
- Operating: -20ºC to 55ºC（Customizable：-40ºC to 55ºC）
- Storage: -40ºC to 70ºC（Customizable：-50ºC to 70ºC）
Humidity:5%- 95% RH , non-condensing

Battery

11.1V / 7300 mAh , 81W ,
Support 5 hours of working time (1080P video playback , 50% volume , 200nit screen brightness)

Adapter

Input: 100Vac ~240Vac , 50Hz/60Hz 20V 5A 100W aviation plug connecter
